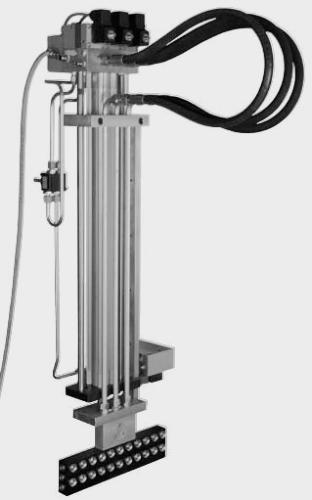

Spray equipment PSG 3600
Technical Data
Length of stroke:
400 mm or 600 mm
Drive:
Pneumatic Cylinder
Electric control:
External Control
Distance measurement:
Encoder
Limit Switch
Cirquits:
1 Spray Circuit
1 Blow Cirquit
1 Lubricant
Spray system:
Spray Tool 2 x 15 nozzles max.
Blow Tool 2 x 15 nozzles max.
Air pressure connection:
G1/4
Lubricant connection:
G3/8
Electric connection:
Cable 5m with 10-pin Connector
Spray equipment PSG 3600
